Cataract Surgery Equipment - Touchscreen UI
Designed a live video touchscreen UI to assist surgeons and their nurses with cataract surgery. This provided live video feedback during surgery and allowed the surgeon or nurse to make quick and accurate adjustments to the surgery equipment during a procedure.
Role
UX Strategist
Process
Foundational Knowledge
Concepts
Visual Design
Usability Evaluation
Tools
Whiteboard
Paper & Pencil
Sketch
Invision
Justinmind
Keynote
PROBLEM
The operating screen UI was cluttered with controls making it hard for users to make quick procedure adjustments and focus on the important operating parameters during surgeries.
FOUNDATIONAL KNOWLEDGE
This is the first step to creating a compelling UI. It is essential to understand what the product offers, it’s roadmap, business drivers, competition, and users. Services provided for this project included: Heuristic Analysis, Stakeholder Interviews, User Research, User Interviews, On-Site Observations, & Competitive Analysis.
HEURISTIC ANALYSIS
Evaluating the current product to asses its overall usability. The end result gives insight on areas that work well and those which need improvement.
Old UI
OBSERVATIONS & CUSTOMER INTERVIEWS
User observations are crucial because they let us witness firsthand how end users work with a product while in their natural habitat. The observations let us see the entire user experience while gaining insight into the users’ unstated needs and observing other inefficiencies that may be improved upon during the design process
Experience Flow
Research & Observation Findings
Operative screen is cluttered with unused options
Program Selection usability is good but can be more welcoming
Setup experience can be improved by guiding the users through the setup process
Overall aesthetics can be improved and modernized
CONCEPTS
Based on a products needs and a defined set of experience priorities, concepts are developed around task flow, navigation, and screen layout. The concepts cover the primary use cases so that we can see how the system will behave at a macro level. Services provided for this project included: Concept Wireframes
DESIGN OBJECTIVES
Streamline the operating screen and draw focus to important elements
Identify different ways to visualize parameters and how to indicate the current mode
Make it clear what the foot switch is controlling
Evaluate the use of portrait orientation or a video based layout
Explore a “modeless” concept
CONCEPT MIND MAP
CONCEPT WIREFRAME SAMPLES
Operation Screen - Program Concepts
Concept A
Concept B
Concept C
Operation Screen - Video Concepts

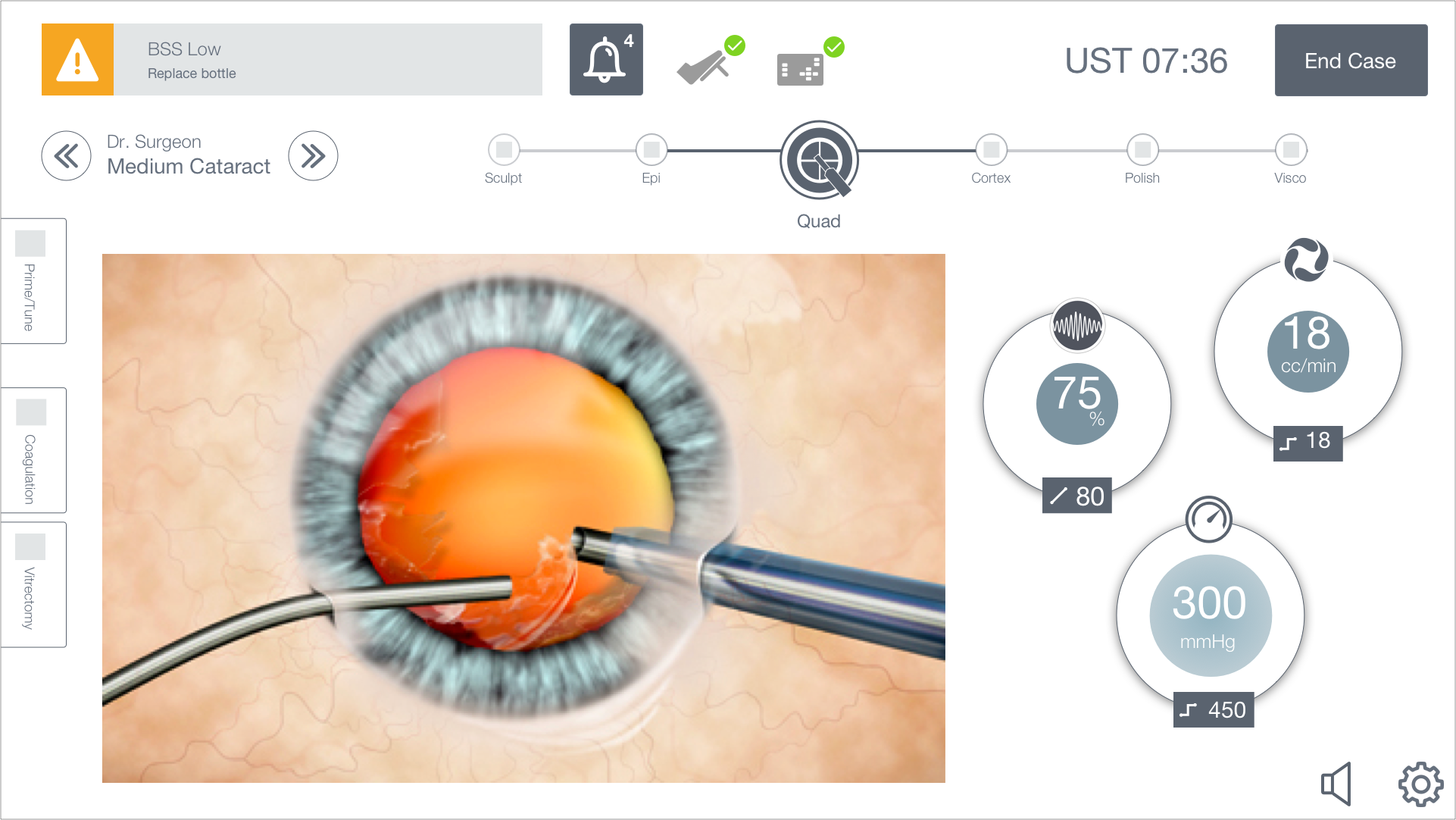

Concept D
Concept E
Operation Screen - Modeless & Portrait Concepts
Concept F
Concept G
Concept H
VISUAL DESIGN
During the visual design phase artwork and graphics are applied to the design. Clarity and meaning are brought to the user experience by carefully crafting visual themes, color schemes, typography, and icons. Services provided for this project included creating: Visual Theme Exploration, Screen Renderings, Graphical Interface Elements, Icon Designs, and Style Guides.
OPERATION SCREEN
USABILITY EVALUATION
Having users validate the product while in the design stage will help vet any key decisions made before effort is spent on the final designs. From informal feedback sessions with customers and stakeholders, to formal testing across wide demographics , we can identify sources of confusion, measure task times and judge how users respond to layout and navigation. Services provided for this project included creating: Testing Protocols, Lo-Fi Prototype and Testing Discussion Guide.
PROTOTYPE VIDEO - SETTINGS SCREEN
